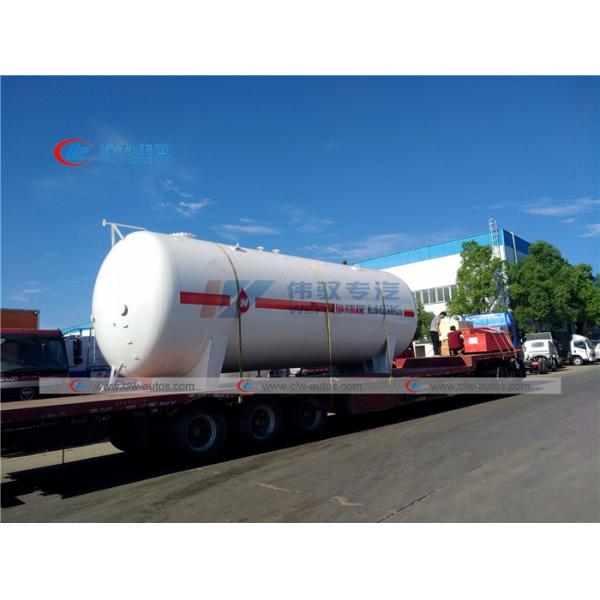

DN2700mm 50m3 60m3 80m3 100m3 LPG Bullet Tank

Brand Name : CLW

Model Number : ASME,CCC,SGS,BV

Certification : CLW9520

Place of Origin : Suizhou, China

MOQ : 1 Unit

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Units/Month

Delivery Time : 20~30 days after receiving deposit

Packaging Details : Naked Package,Bulk Ship,Roll-Roll

Size Option : 40m3,50m3,60m3,80m3,100m3

Materail : Carbon Steel Q345R

Filling Medium : Propane,butane

Tank Diameter : DN2700mm

Design Pressure : 1.77Mpa

Level Gauge : Rotogage Or Megnatic Type

Tank Valves : Cut-off Valve, Needle Valve, Safety Valve, Return Valve etc..

LOGO : As per request

Service time : 15 years

Contact Now

Factory Sales 50m3 60m3 80m3 100m3 LPG Bullet Tank LPG Storage Tank

Product Description

20-25MT Propane Gas Station Tanks 100m3 LPG Storage Tank

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

Factory Sales 50m3 60m3 80m3 100m3 LPG Bullet Tank LPG Storage Tank

50 CBM LPG TANK DIMENSIONS
Volume of Tank		50 CBM
Filling Weight		25000 kg
Tank Weight		10640kg
Thickness of Shell (mm)		14 mm
Thickness of End plate (mm)		16 mm
Tank Diameter (mm)		2700 mm
External Dimensions (mm) (length x width x height)		9182 x X2728X3318 mm
Material of Tank and Main Pressure Parts		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa / 17.7Bar
Corrosion Allowance		1 mm
Medium Density		500 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item	Specification		Quantity
Discharge Pipe	DN80		1
Inflow Pipe	DN80		1
Gas phase balance pipes	DN50		2
Drain Hole	DN50		1
Manhole	DN450		1
Air-out Pipe	DN50		1
Safety Valve Pipe	DN80		2
Safety Accessories (Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge.

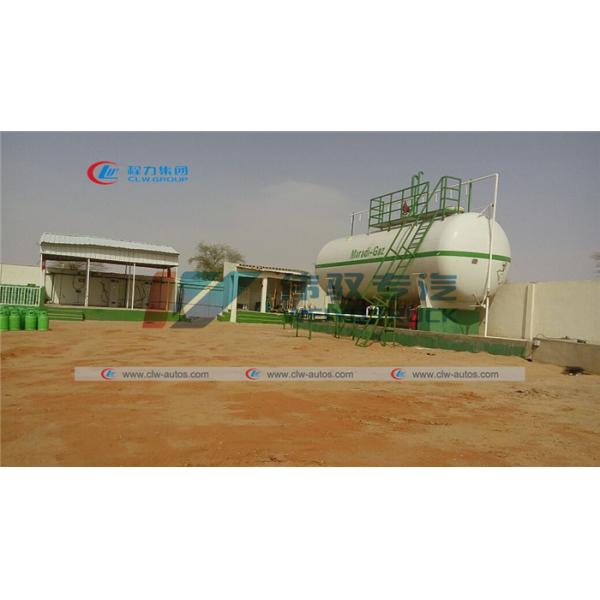

Gas filling station design

DN2700mm 50m3 60m3 80m3 100m3 LPG Bullet Tank

Key words: 50m3 LPG storage tank, 25mt LPG tank, 25tons Propane gas tank, 25tons gas tank
